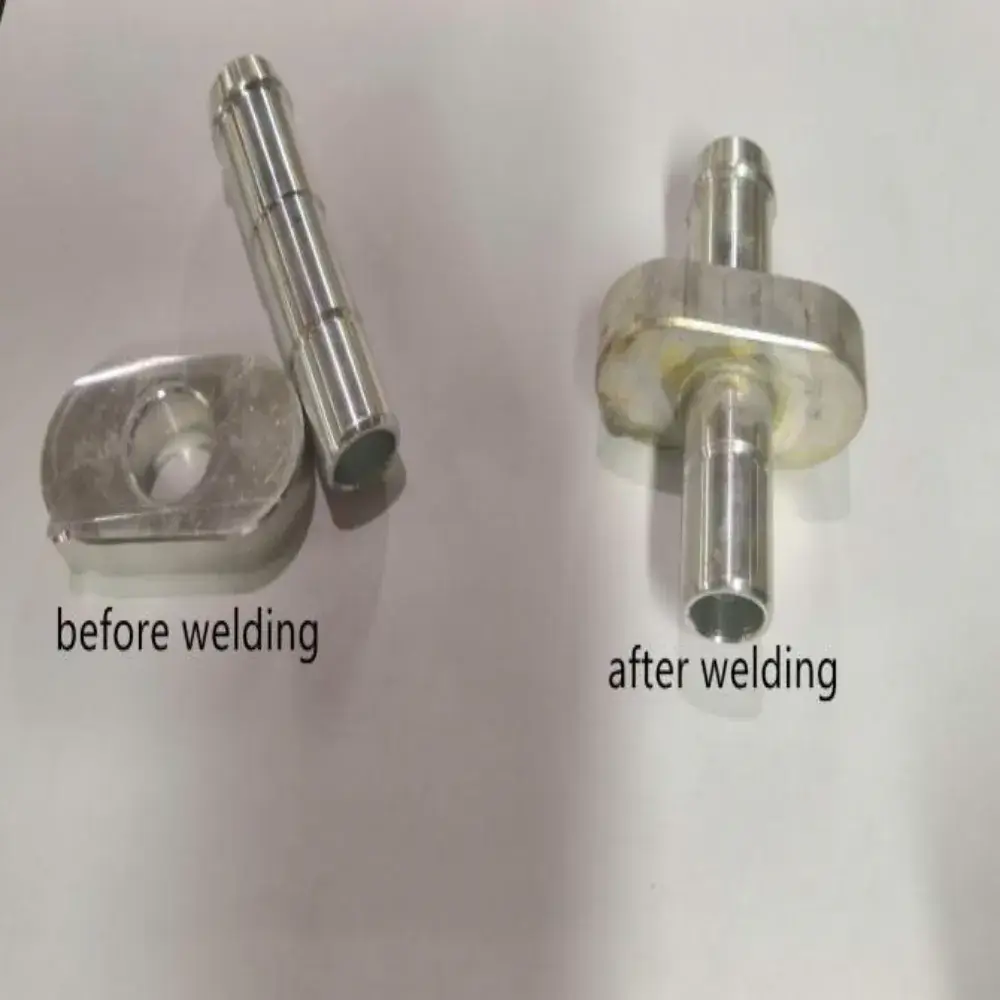

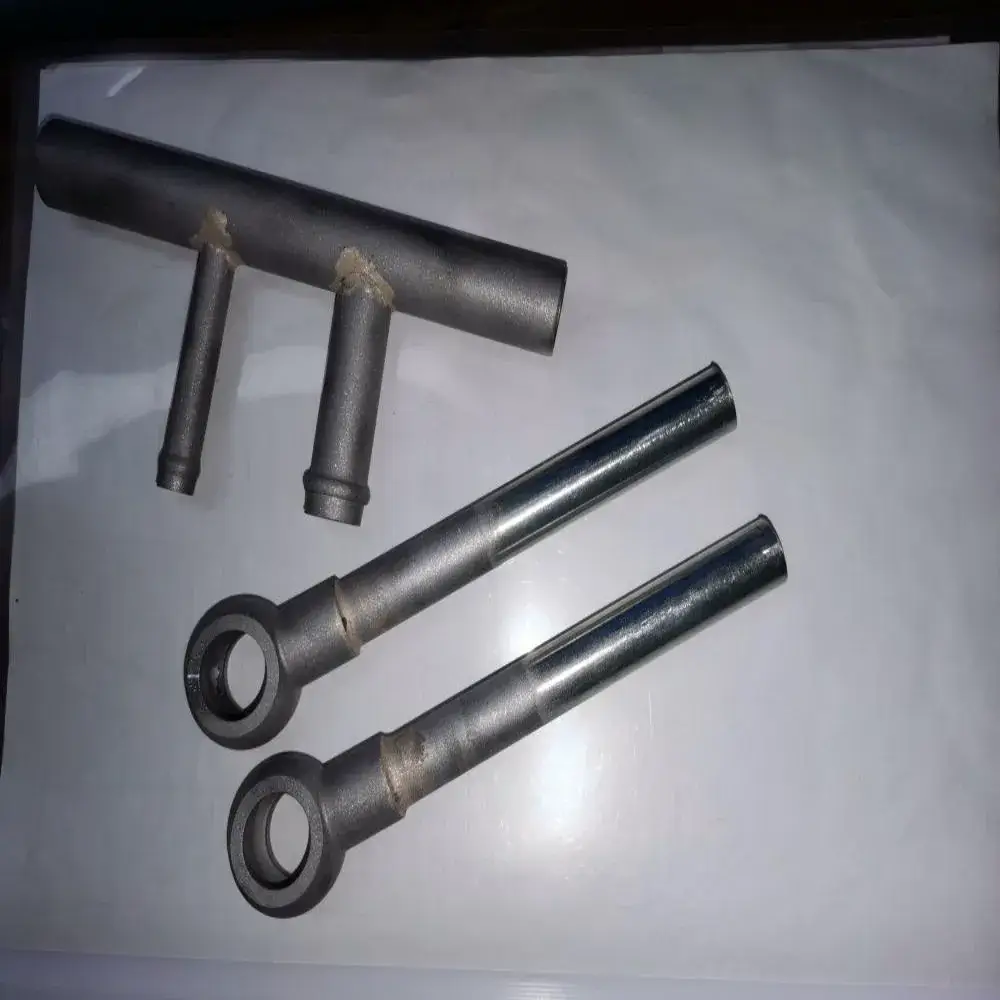

Aluminum pipe induction welding is a highly efficient and clean joining process suitable for connecting aluminum pipes with fittings (such as flanges and connectors) in refrigeration, automotive, aerospace, and other industries. Due to aluminum’s high electrical conductivity (approximately 37.7 MS/m) and thermal conductivity (237 W/m·K), as well as its tendency to oxidize, the process design requires targeted optimization. The following outlines the core technologies and implementation key points for aluminum pipe induction welding:
I. Process Characteristics and Challenges
-
Material Properties
- Oxide Layer Issue: The aluminum surface forms aluminum oxide (Al₂O₃) with a high melting point (2050°C), which hinders welding wetting and must be effectively removed or inhibited.
- Thermal Sensitivity: Aluminum has a low melting point (660°C), requiring precise temperature control to prevent local overburning or deformation.
-
Process Advantages
- High Efficiency and Cleanliness: No open flame or fumes, and compatible with protective gas to avoid oxidation, achieving a weld surface finish of Ra ≤1.6μm.
- Energy Saving and Precision: Short heating time (3–15 seconds per weld point), with energy consumption only 40–60% of traditional TIG welding.
II. Equipment Configuration Scheme
| Module | Technical Requirements |
|---|---|
| Induction Power Supply | High-frequency IGBT power supply (30–100 kW, frequency 50–300 kHz) |
| Induction Coil | Custom profile-matched coil (copper tube wound, open design) adapted to aluminum pipe shapes (straight pipes, elbows, T-joints). |
| Protective Gas System | Argon or nitrogen shielding (purity ≥99.99%, flow rate 10–20 L/min) to inhibit oxidation. |
| Brazing/Fusion Welding Materials | Brazing: Al-Si filler metal (e.g., 4047, melting point 577–615°C) + fluoride flux; Fusion welding: ER4043 welding wire. |
| Clamping and Positioning | Pneumatic/servo fixtures (repeatability ±0.05 mm) to ensure assembly gap ≤0.1 mm (brazing) or close contact (fusion welding). |
| Cooling System | Closed-loop water chiller (flow rate ≥30 L/min, water temperature ≤25°C) to prevent coil overheating and aluminum pipe deformation. |
| Testing Equipment | Infrared thermal imager (temperature control ±10°C), X-ray flaw detection (porosity ≤3%), tensile testing machine (strength ≥80% of base metal). |
III. Process Parameters and Flow
-
Key Parameters
- Frequency: 100–300 kHz for thin-walled pipes (δ≤2 mm), 50–100 kHz for thick-walled pipes (δ>2 mm);
- Power: 30–80 kW (depending on pipe diameter and welding method);
- Heating time: 5–15 seconds for brazing (until filler metal flows), 3–8 seconds for fusion welding (local melting);
- Protective gas: Argon preferred (superior inertness), flow rate adjusted according to weld size.
-
Operation Flow
- Preprocessing:
- Mechanical grinding or chemical cleaning (NaOH solution for deoxidization → nitric acid neutralization → rinse with water);
- Pre-apply flux (e.g., KAlF₄-KF eutectic flux) or pre-place welding wire (fusion welding).
- Assembly: Position aluminum pipes and fittings to ensure uniform gap (brazing) or close contact (fusion welding).
- Heating and Welding:

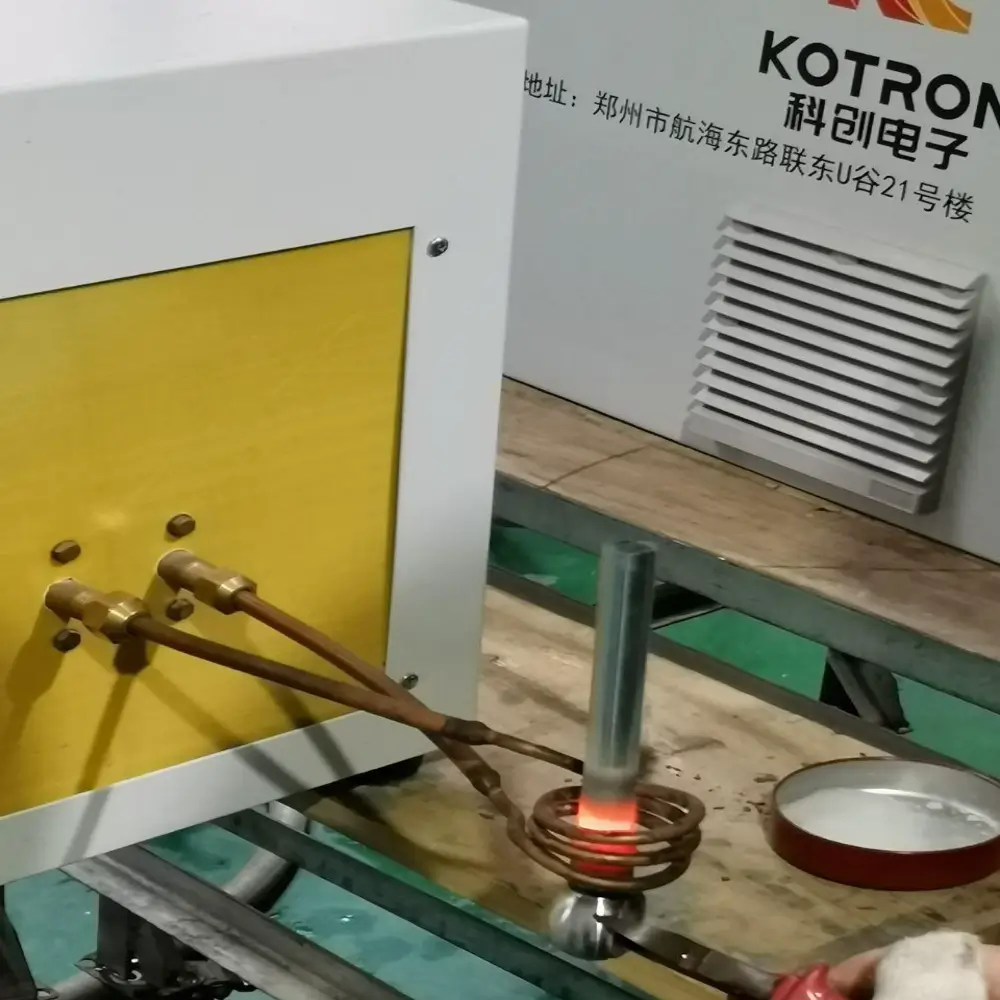

- Surround the weld point with an induction coil and apply high-frequency heating to the target temperature (600–650°C for brazing, 660–700°C for fusion welding);
- Brazing relies on capillary action to fill gaps, while fusion welding requires pressure to promote molten pool fusion.
- Postprocessing: Air cooling or forced air cooling, clean residual flux (hot water rinsing), and inspect weld quality.
- Preprocessing:
V. Process Difficulties and Solutions
(Note: The original Chinese numbering skips from “III” to “V,” likely a typo. The translation retains the original numbering.)
| Issue | Cause | Solution |
|---|---|---|
| Poor Filler Metal Wetting | Incomplete oxide layer removal | Enhanced preprocessing (ultrasonic cleaning + active flux); inert gas shielding. |
| Local Burn-Through | Uneven temperature or excessive power | Optimize coil design (magnetic field uniformity); closed-loop temperature control + power gradient adjustment. |
| Weld Porosity | Gas entrapment or flux volatilization | Improve protective gas purity; vacuum brazing (for high-end applications). |
| Heat-Affected Zone Softening | Over-tempering or grain coarsening | Control heating time; post-weld water cooling (fusion welding). |
VI. Economic Analysis
| Project | Induction Welding | TIG Welding |
|---|---|---|
| Single-Point Cost | ¥0.8–1.5 (power+gas+filler) | ¥2.0–3.5 (argon+power) |
| Efficiency | 400–600 points/shift | 150–250 points/shift |
| Pass Rate | ≥98% | 90–95% |
Conclusion
Aluminum pipe induction welding achieves high-quality connections efficiently through high-frequency precise heating, inert gas shielding, and optimized brazing/fusion welding processes. Recommended solutions:
- Brazing: 50 kW high-frequency power supply + argon shielding + 4047 filler metal, suitable for thin-walled pipes (δ≤3 mm);
- Fusion Welding: 80 kW medium-high frequency power supply + ER4043 welding wire, ideal for thick-walled pipes or high-strength joints.
Initial investment is approximately ¥300,000–1,000,000 (depending on configuration), with a payback period typically <1.5 years (based on 200,000 weld points annually). For high-requirement fields like aerospace, upgrading to vacuum induction brazing equipment can completely eliminate oxidation risks.
