Enhanced Intelligent Induction Heating Machine
Digital intelligent control
Ultra high precision control
Intelligent protection
Seal protection
Digital intelligent control
Compared with the analog control system, DSP intelligent induction heating power supply has higher stability in different environments, IGBT can be controlled to work in the best soft switching state, so as to optimize switching loss, voltage and current impact, local temperature rise and other parameters. Avoid the inverter efficiency decrease when the inverter state deviates from the best state. Also solve IGBT aging acceleration (such as after using a year and inexplicable damage) and later period maintenance cost is high.
Ultra high precision control
Power frequency control technology use the second generation high performance precise algorithm, All control processes, data processing, parameter calculation, etc. are calculated within the intelligent chip at a high speed. Frequency tracking without loss lock, no drift, control accuracy up to nS level. Combined with proprietary load matching testing techniques, real-time tracking shows the load matching condition to ensure that the equipment is always in the best power factor range.
Intelligent protection
Has a wealth of fault judgment protection circuit, under the cooling water pressure is unstable, temperature is too high, the three-phase power defaults, and the cold workpiece meets the induction coil (grounding protection) condition, power supply inverter can ensure that the output power. When the power supply in the normal heating working if suddenly encountered bad conditions, it can judge all kinds of protection signals separately and send out fault alarm. Such as: over voltage, over current, frequency over limit, IGBT fault alarm signals, can help users find troubleshooting source.
Seal protection
Use sealing tape, together with the groove box edge, can achieve the high level IP54 protection level. Dust, moisture and soot cannot enter the cabinet, It can be used for a long time even in harsh environment, the internal environment is still clean, so that all electronic devices always play the best performance.
Higher control accuracy
The control precision of power control and frequency tracking control is always optimal and will not be affected by the change of working frequency.
Stronger adaptability
Adapt to wider working voltage, the grid voltage fluctuations can also be stable operation.
Wider matching range
The range of power regulation is wider, which can be adjusted from 1% to 100%, and the load adaptability is stronger, so that both no load and heavy load can be started smoothly.
More scalability
Can realize diversified expansion, such as dual-frequency, dual-station, ultra-high frequency, ultra-low frequency and other complex working conditions.
| Power/kW | Frenquency/kHZ | Control pricision | Resonant mode | |
| Medium Frenquency | 80-2000 | 0.2-10 | 0.10% | Series parallel, Hybrid resonant |
| High Frenquency | 20-400 | 60-600 | 0.10% | Series parallel, Hybrid resonant |
| Ultrasonic Frenquency | 80-2000 | 10-60 | 0.10% | Series parallel, Hybrid resonant |
| Mixing frequency | 50-400 | 1-400 | 0.10% | Hybrid resonant |

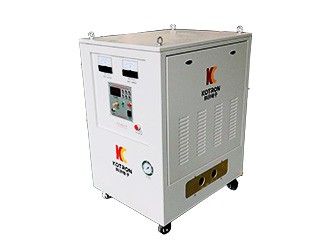

Portable Induction Heating Machine
The intelligent digital induction heating power supply has a high-speed core processor of 100 megabytes, which can calculate and process all digital s...

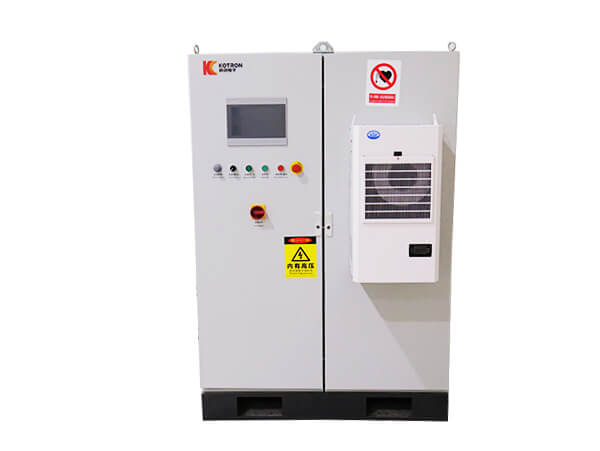

Air Cooling Induction Heating Machine
The signal Uses optical fiber transmission, in the transmission process, the loss of the signal is small, no error signal without distortion, enhance ...
Analog Circuit Induction Heating Machine
Power: 18-200KW Oscillating frequency: 10-80KHZ Input voltage 3 phase 380V 50/60Hz Water pressure: 0.15-0.3Mpa

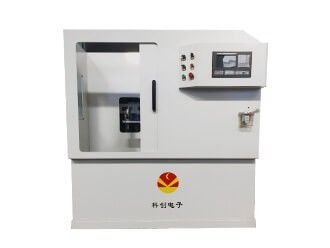

Hardening Machine Tools
Model JC-Z01Model JC-S01Model JC-Z01Model JC-W01
