For hot assembling and hot disassembling; shrinking fitting.

DSP induction heating power supply is adopted, and the main inverter circuit is controlled separately.

The intelligent digital induction heating power supply has a high-speed core processor of 100 megabytes, which can calculate and process all digital signals.

The signal Uses optical fiber transmission, in the transmission process, the loss of the signal is small, no error signal without distortion, enhance the stability of the control circuit.

DSP core control board can be extended up to 12 fiber signals.

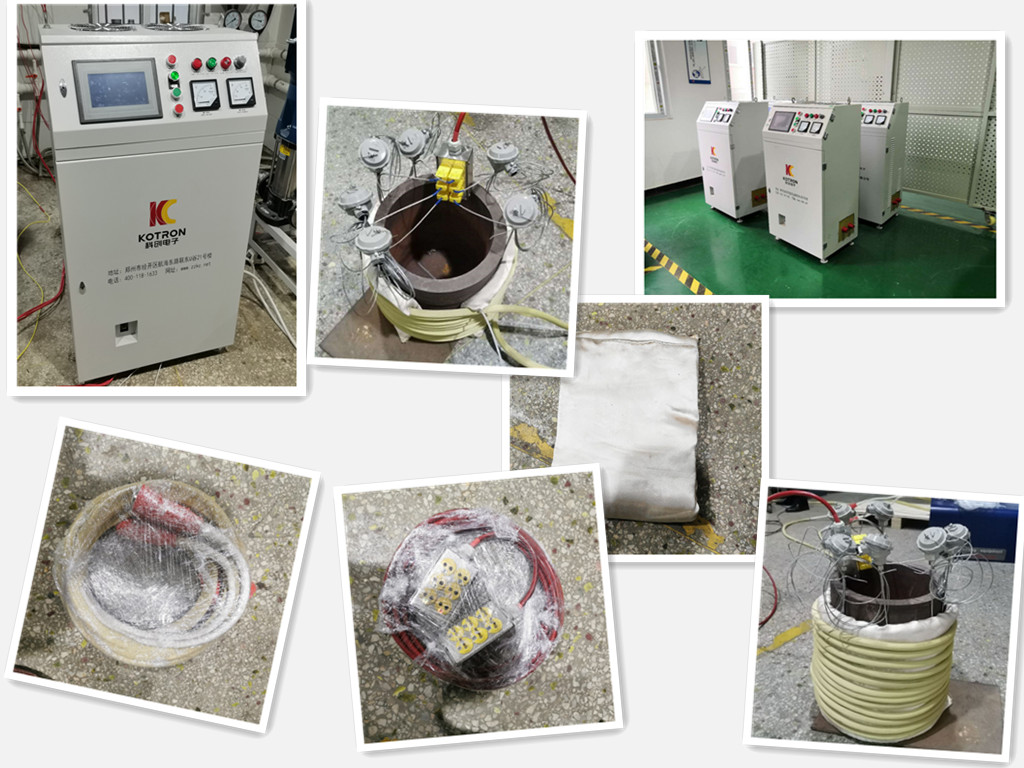

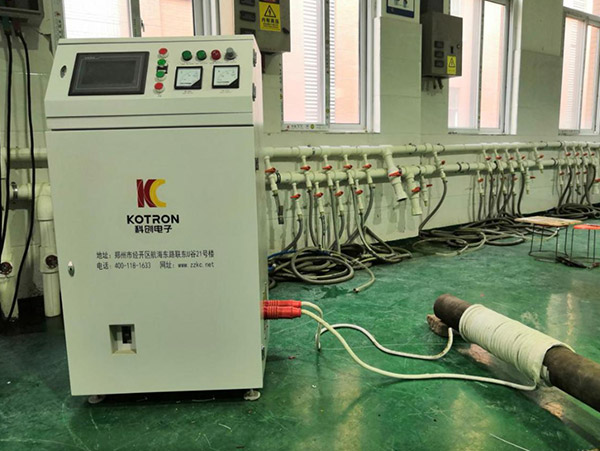

Complete set of Air cooling Induction heating machine with magnet wire for low-temperature warming.

60-150KW induction heating power supply.


#Thermocouple #magnetwire #warming #heating #aircooling #aircooler #clampcoils #shrinkage #shrinking#fitting#unfitting#assemble#diassemble#Hot assambling

Product Features

Induction heat treatment solution


Leading Technology

The full digital intelligent power supply is controlled by DSP processor, and the control process, data operation, parameter storage and other aspects of the system are all processed in digital form by using digital control technology. Environmental changes such as temperature changes will not affect the internal processing process and results of the system.


Touch screen display

The working state and working parameters of the equipment can be visually displayed on the touch screen. The display parameters include: working frequency, oscillation current, dc voltage, dc current, output power and other parameters.Working state includes load matching indication and other functions.


Intelligent protection system

Condition of power supply in normal work, if suddenly will automatically latch fault alarm, at this time, all kinds of protection and fault alarm signal, such as: light capacitor, IGBT power speed protection, diode special protection, over voltage, over current, lack of phase and other protection, to ensure that the equipment is reliable and durable.


Powerful communication function

Rs485/232 interface is reserved to exchange data with external controller (industrial computer, industrial touch screen, laptop, etc.) or central control room.


Fault self-diagnosis and online processing

When there is an alarm due to wrong operation or special working condition, the touch screen will display the fault content, and click the corresponding fault help to query the corresponding fault solution.


Signal transmission USES fiber transmission

The electromagnetic environment inside the power supply cabinet is complex, and the transmission of weak electric signals (such as drive signals, protection signals, feedback signals, etc.) is prone to electromagnetic interference, while light is not affected by the electromagnetic environment. Therefore, these important signals are transmitted by optical fiber, which improves the overall stability and reliability of the equipment.

TAG:   Clamp  induction aricooling wiresheating
Product parameters
Air cooling High frequency induction heating machine heating machine
Brand: KECHUANG HS code: 8514400090
Input voltage  :Three phases 380V±10% 50KHz
Rated input power 30KVA 40KVA 50KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA
Max.input current 45A 60A 75A 90A 120A 150A 180A 240A 300A
Frequency 1-50KHZ
Frequency control precision:±1.5KHz
Power regulation range:0.1%-100%(Digital regulation)
Power Factor:>0.95
Startup time:0.1sec
Power stability:<±0.1%

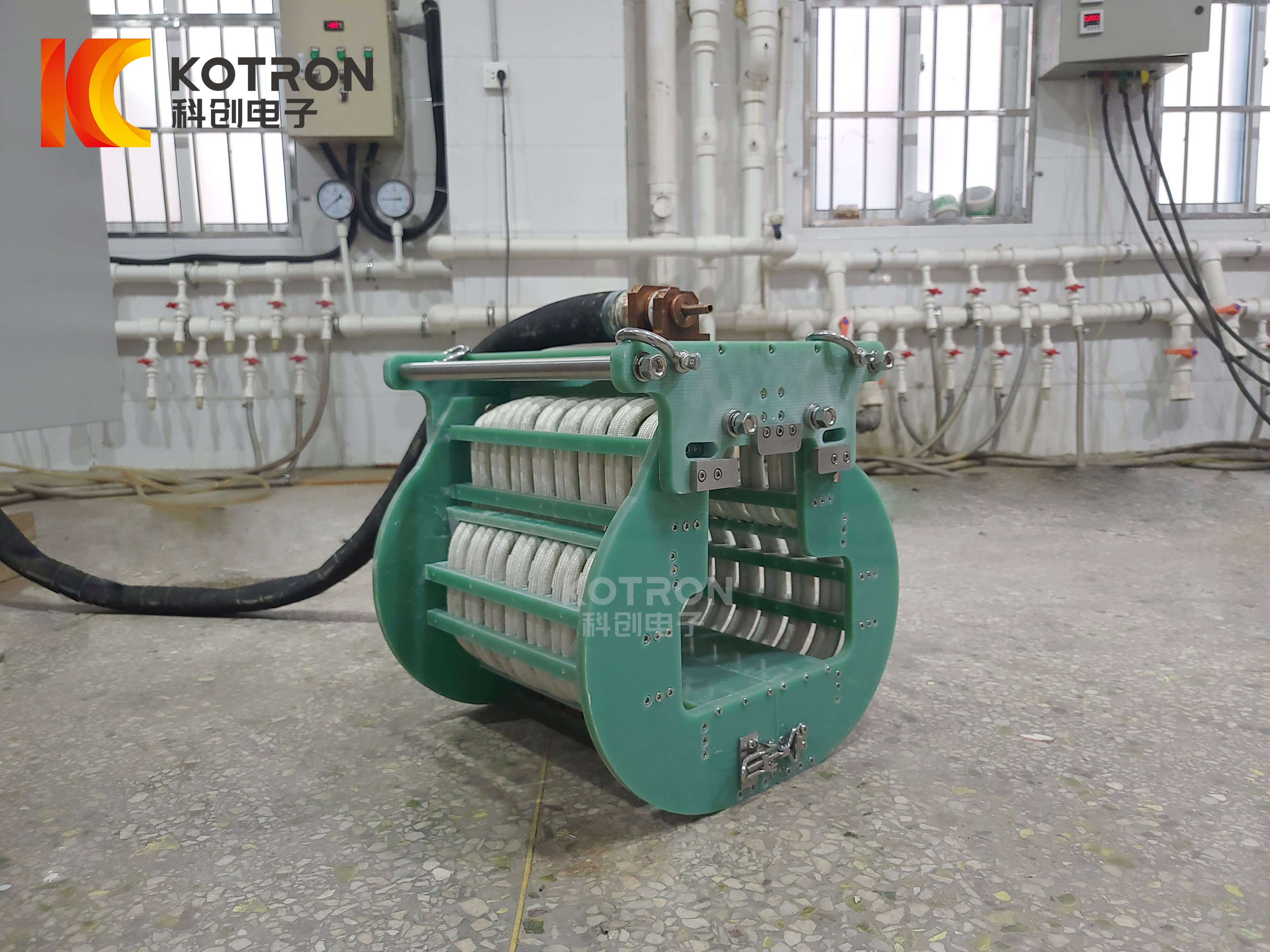

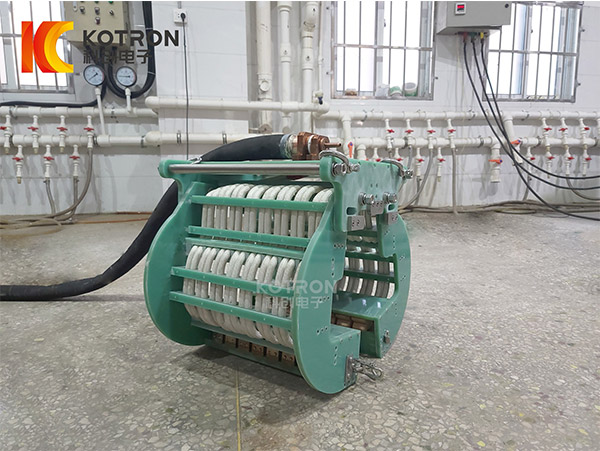

Assembly Clamp Induction Coils


Induction heat treatment solutionInduction heat treatment solution

TAG:   Clamp  induction aricooling wiresheating
