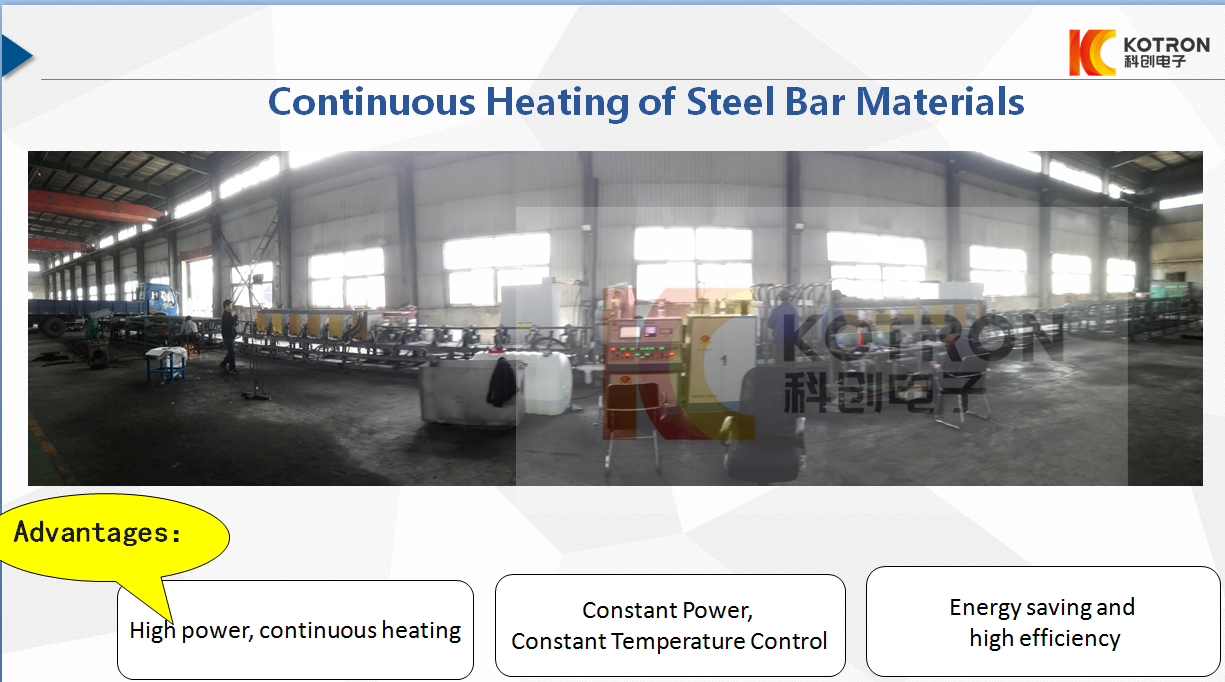

Bar quenching and tempering production line

2024-03-21
Bar quenching and tempering production line

   Product name: Bars
  Product specifications: φ30-80mm×2000-9000 mm
  Induction power supply: 500+300+100KW /DSP/IGBT
  Control system: PLC+temperature control
  Cooling system: power supply cooling + quenching liquid cooling
Production line: storage rack + conveyor line + preheating zone + heating zone + heat preservation zone + cooling zone + transition zone + roller tempering furnace
    Key technology: uniform temperature inside and outside the bar, precise control of the production line speed, stable continuous operation of the system, and highly integrated process information.

Bar quenching and tempering production line
