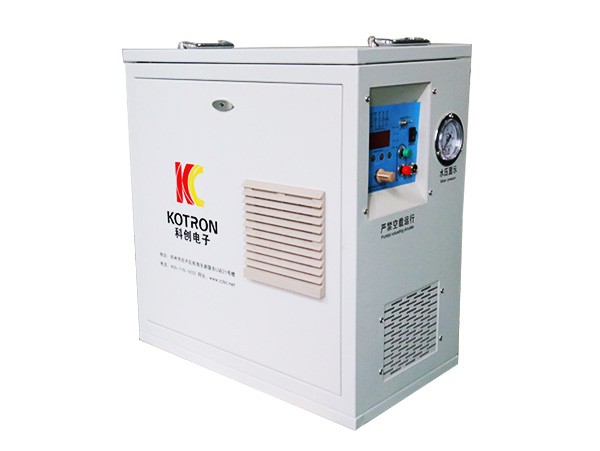

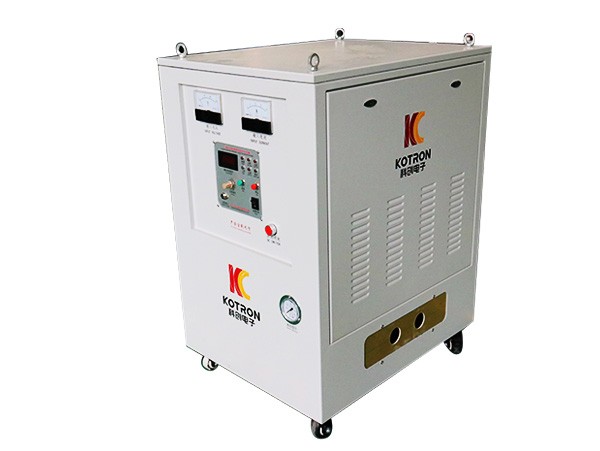

Analog Circuit Induction Heater
30KW Analog Circuit Induction Heater
Power: 25-120KW
Oscillating frequency: 1-80KHZ
Input voltage 3 phase 380V 50/60Hz
Water pressure: 0.15-0.3Mpa
Kechuang high frequency application range
Heat treating; All kinds of auto parts, motorcycle, hardware tools, gear, sprocket, steam, hydraulic accessories, and other metal parts of the parts or the whole annealing, quenching, tempering.
Heating for forging small type workpiece part or whole heating, twist drills heating upsetting and forging.
Braze welding; All kinds of cutting tool, woodworking cutter, drill bit, saw blades saw, steel pipe, copper tube welding, the same species metal welding.
Melting Gold, silver, copper, iron, aluminum and other metal (vacuum) smelting, casting forming and evaporation coating.
Other fields; Semiconductor single crystal growth, shrink fit, sealing surface heat sealing, powder coating, metal implants plastic, etc.
Kechuang high frequency superiority
Adopts large scale integrated circuit, compared to the electric tube high frequency,it saving 40-60% energy, saving 60% water.
Peripheral auxiliary facilities investment dropped more than 75%
Small volume,light weight
High reliability, easy operation and simple maintenance
Safety, no high voltageeasy easy to operate, it takes 10 minutes for you to easy to operate the machine.

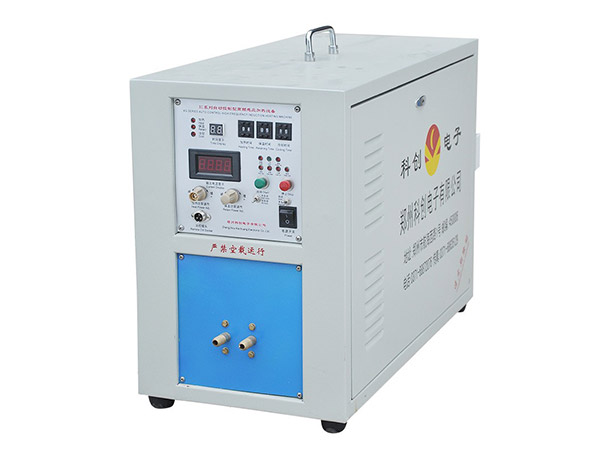

Ultrasonic Frenquency High frequency induction heating machine heating machine
| Model | Input voltage | Input power | frequency | Water pressure | Size(mm) | Weight(kg) |
| XG-25 | 380V/50Hz | 25KVA | 20-80KHZ | 0.1-0.3Mpa | 590×260×460 | 36 |
| XG-30 | 380V/50Hz | 30KVA | 20-80KHZ | 0.1-0.3Mpa | 700*350*565 | 62 |

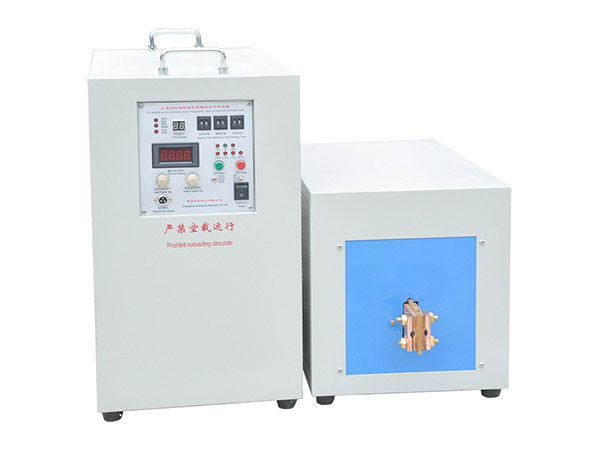

| XG-40 | 380V/50Hz | 40KVA | 20-60KHZ | 0.15-0.3Mpa | Mainbody: 700*350*565 | 92 |
| Transformer: 570*350*360 | ||||||
| XG-50 | 380V/50Hz | 50KVA | 20-50KHZ | 0.15-0.3Mpa | Mainbody: 600*450*900 | 113 |
| Transformer:500*400*470 | ||||||
| XG-60 | 380V/50Hz | 60KVA | 20-50KHZ | 0.15-0.3Mpa | Mainbody: 650*600*840 | 175 |
| Transformer:700*420*600 | ||||||
| XG-80 | 380V/50Hz | 80KVA | 20-40KHZ | 0.15-0.3Mpa | Mainbody: 750*600*900 | 188 |
| Transformer: 700*420*600 | ||||||
| XG-100 | 380V/50Hz | 100KVA | 20-40KHZ | 0.15-0.3Mpa | Mainbody: 900*600*900 | 210 |
| Transformer: 800*480*600 | ||||||
| XG-120 | 380V/50Hz | 120KVA | 20-40KHZ | 0.15-0.3Mpa | Mainbody: 900*600*900 | 278 |
| Transformer: 800*480*600 |
Medium frequency induction heating machine
| Model | Input voltage | Input power | frequency | Water pressure | Size(mm) | Weight(kg) |
| XZ-40 | 380V/50Hz | 40KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody: 700*350*565 | 92 |
| Transformer: 570*350*360 | ||||||
| XZ-50 | 380V/50Hz | 50KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody600*450*900 | 113 |
| Transformer: 500*400*470 | ||||||
| XZ-60 | 380V/50Hz | 60KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody650*600*840 | 175 |
| Transformer: 700*420*600 | ||||||
| XZ-80 | 380V/50Hz | 80KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody: 750*600*900 | 188 |
| Transformer: 700*420*600 | ||||||
| XZ-100 | 380V/50Hz | 100KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody: 900*600*900 | 210 |
| Transformer: 800*480*600 | ||||||
| XZ-120 | 380V/50Hz | 120KVA | 1-20KHZ | 0.15-0.3Mpa | Mainbody: 900*600*900 | 278 |
| Transformer: 800*480*600 |
-
Air Cooling Induction Heating Machine with Clamp magnet wires induction coils
The signal Uses optical fiber transmission, in the transmission process, the loss of the signal is small, no error signal without distortion, enhance the stability of the control circuit.
-
Enhanced Intelligent Induction Heating Machine
Compared with the analog control system, DSP intelligent induction heating power supply has higher stability in different environments, IGBT can be controlled to work in the best soft switching state.
-
2022 New Technology--Synchronous Dual Frequency Induction Heating Machine
2022 New Technology--Frequency Mixing Induction Heating Machine Synchronous Dual Frequency
-
Standard Intelligent Induction Heating Machine
Full digital frequency tracking technology enables IGBT to work at all times Zero open state, the inverter power factor always remains above 95%.
